Identifying and Sourcing Milgard Patio Doors Replacement Parts

When it comes to maintaining performance and thermal efficiency, sourcing exact original equipment manufacturer (OEM) hardware is critical. Sourcing genuine milgard patio doors replacement parts ensures that the fit, structural integrity, and multi-point security mechanisms function exactly as designed. While universal aftermarket hardware may appear convenient, subtle variations in mortise dimensions, wheel contours, and spindle lengths often lead to premature component failure or binding along the door frame. Proper routine care, paired with proper hardware selection, will protect your investment—check out our guide on Routine Maintenance for Your New Patio Doors for tips on keeping your system running smoothly.

Key Hardware Types for Milgard Patio Doors Replacement Parts

Sliding and swinging patio door systems rely on several integrated mechanical hardware components to ensure smooth movement and reliable security:

Tandem Steel and Stainless Steel Rollers: Positioned inside the bottom rail, tandem rollers bear the full weight of the glass panel. They feature height-adjustment screws accessible through the bottom edge or face of the door rail.
Mortise Locks and Square Keyways: Internal double-mortise or single-mortise lock mechanisms sit flush inside the door frame cutout. These latching assemblies feature a square keyway driven by the handle’s thumb lever.
Handle Sets and Latches: Includes interior thumb latches, exterior pulls, and optional keyed cylinders.
Keepers and Strike Plates: The metal plates mounted to the door jamb that receive the mortise lock hooks. Keepers typically include center alignment caps to ensure precise latch engagement.
Screen Door Tensioners and Rollers: Top and bottom spring-loaded nylon or steel roller assemblies designed to keep insect screens aligned on their independent tracks.
Weatherstripping and Interlock Seals: High-density pile and wool-pile weather seals that eliminate air infiltration and prevent water leaks along the perimeter.

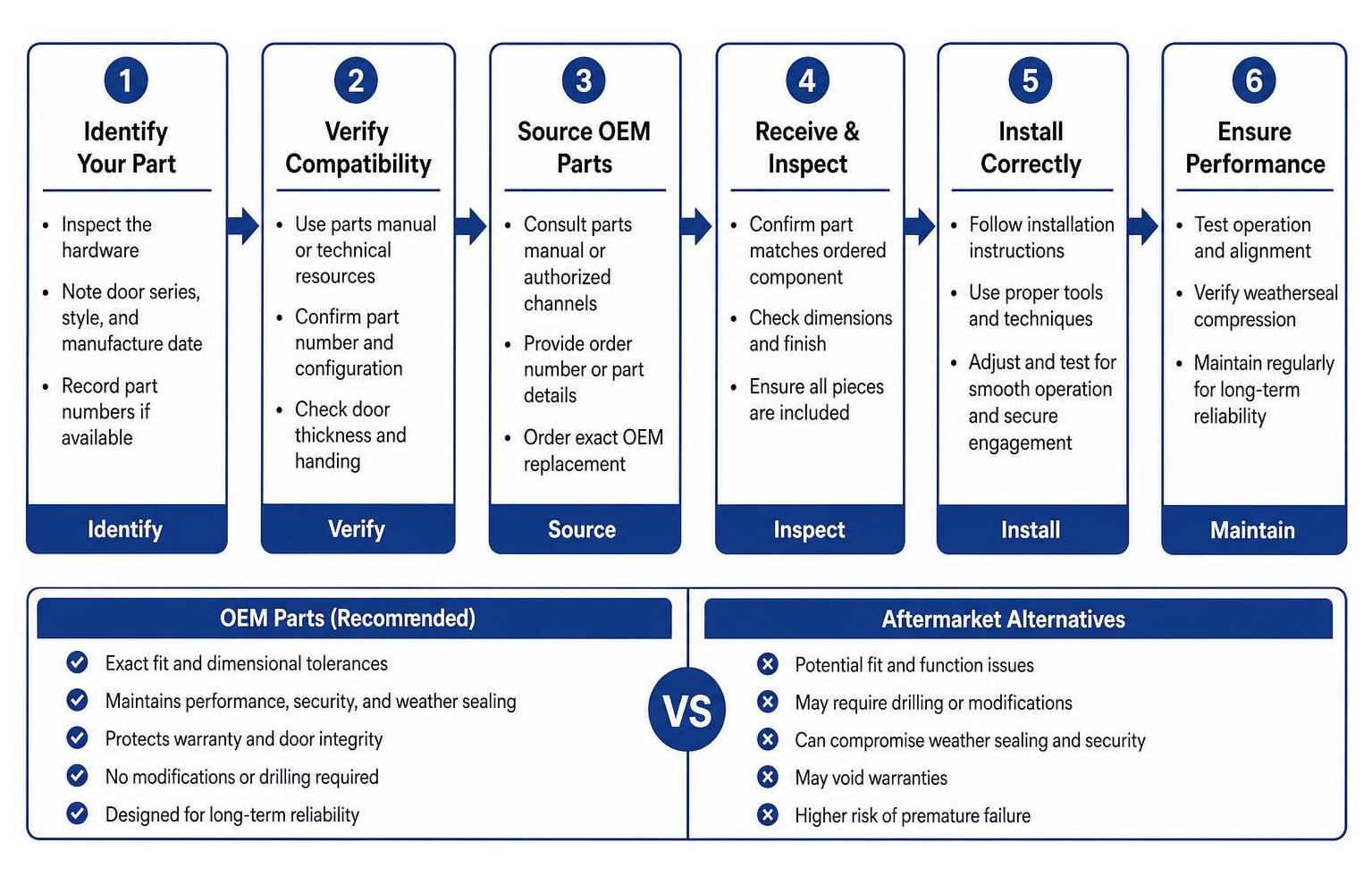

Sourcing OEM Hardware vs Aftermarket Alternatives

Factory OEM parts are manufactured to exact dimensional tolerances. For example, Milgard’s proprietary SmartTouch® handlesets and specialized double-mortise lock hardware rely on exact mounting hole spacing and latch offset distances. Using aftermarket universal parts often requires drilling new holes or modifying the internal framing, which can compromise weather sealing and void manufacturer warranties.

To source accurate OEM replacement components, consult the official Milgard parts manual PDF technical documentation or provide your original order number to an authorized dealer. Technical resource manuals catalogue precise part numbers based on manufacture dates, door series, and material configurations.

Series Specific Compatibility and Hardware Identification

Milgard engineers distinct door series categorized by material composition—including vinyl, fiberglass, wood-clad, and thermally improved aluminum. To learn more about selecting door styles for your home, view our Step-by-Step Guide to Milgard Patio Doors.

Differentiating Tuscany Trinsic Classic and Essence Series

Replacement parts are rarely interchangeable across different door series due to variation in frame extrusions, panel thickness, and rail design:

Tuscany® V400 Series (Vinyl): Known for classic styling, Tuscany doors come in both Standard/Narrow Rail and traditional French Rail profiles. The French Rail option utilizes a wider bottom frame that requires specifically contoured tandem roller assemblies designed for wide-rail weight distribution.
Trinsic™ V300 Series (Vinyl): Features a contemporary, narrow-frame profile that maximizes glass area. Trinsic handle sets and mortise locks feature a streamlined footprint distinct from Tuscany hardware.
Classic Series (Vinyl): Legacy vinyl systems that feature traditional single or double mortise lock mechanisms, specific 1.25-inch roller assemblies, and surface-mounted handle sets.
Essence Series® (Wood-Clad Fiberglass): Combines solid wood interior frames (Pine, Fir) with durable fiberglass exteriors. Essence Series hardware features specific SKU patterns based on interior finish and hand orientation (e.g., SKU prefixes for active handles specifying OX vs. XO panel configurations, such as HA7909 for stainless steel roller assemblies).

When identifying your door series, look for these critical factors:

Profile Thickness: Measure the door panel edge (common vinyl depths include 1-3/16 inch and 1-7/16 inch).
Rail Style: Determine whether the bottom horizontal rail is narrow (standard) or wide (French Rail).
Product Identification Label: Locate the silver or white manufacturer label tucked inside the head jamb or along the edge of the active panel sash.

Understanding Active vs Passive Panel Hardware

Multi-panel sliding and French patio doors utilize two distinct types of hardware configurations:

Active Panel Hardware (OX Configurations): The primary operating door panel (designated as ‘O’ for fixed and ‘X’ for operating). Active panels contain the functioning mortise lock, key cylinder, interior thumb latch, and operating tandem rollers. Handle SKUs ending in ‘OX’ indicate a left-hand active panel configuration.
Passive Panel Hardware (XO Configurations): Used on secondary panels in 3-panel or 4-panel systems, or the stationary side of a double French door. Passive panels feature flush bolts, head/foot lock rods, or dummy handlesets that do not operate an internal locking latch. Handle SKUs ending in ‘XO’ designate right-hand active panel setups.

Step-by-Step DIY Hardware Replacement Guide

Replacing patio door components is a straightforward DIY task when approached methodically with basic hand tools (Phillips screwdriver, slotted screwdriver, tape measure, hex wrench, and wooden shims). For additional details on double-panel setups and sliding door configurations, read our breakdown on Milgard Sliding Patio Doors: Aluminum, Double Panels, and Blinds Explained.

Replacing Mortise Locks Keepers and Handle Sets

Remove Existing Handle Set: Unscrew the top and bottom interior mounting screws. Typical surface-mounted handles utilize a standard 4-15/16 inch center-to-center hole spacing. Gently pull the interior handle and exterior pull off the door panel.
Extract Mortise Lock Body: Locate the two plate screws on the vertical edge of the door panel holding the mortise lock mechanism. Unfasten these screws and pull the mortise lock housing straight out from the cutout keyway.
Install Replacement Mortise Mechanism: Insert the new mortise lock body into the panel slot, ensuring the hook latches face upward in the unlocked position. Secure it with the provided faceplate screws.
Attach Handle Assembly: Position the exterior pull and interior handle set over the mortise lock keyway. Align the square drive spindle and thumb lever shaft through the center square keyway of the lock box. Tighten the interior trim screws until snug—do not overtighten, as this can bind the latch mechanism.
Adjust Jamb Keeper (Strike Plate): Position the new keeper plate on the door jamb frame. Verify that the center-to-center screw spacing matches the standard 5-3/8 inch measurement. Ensure the alignment cap sits centrally within the keeper opening so the mortise hooks catch smoothly upon closure.

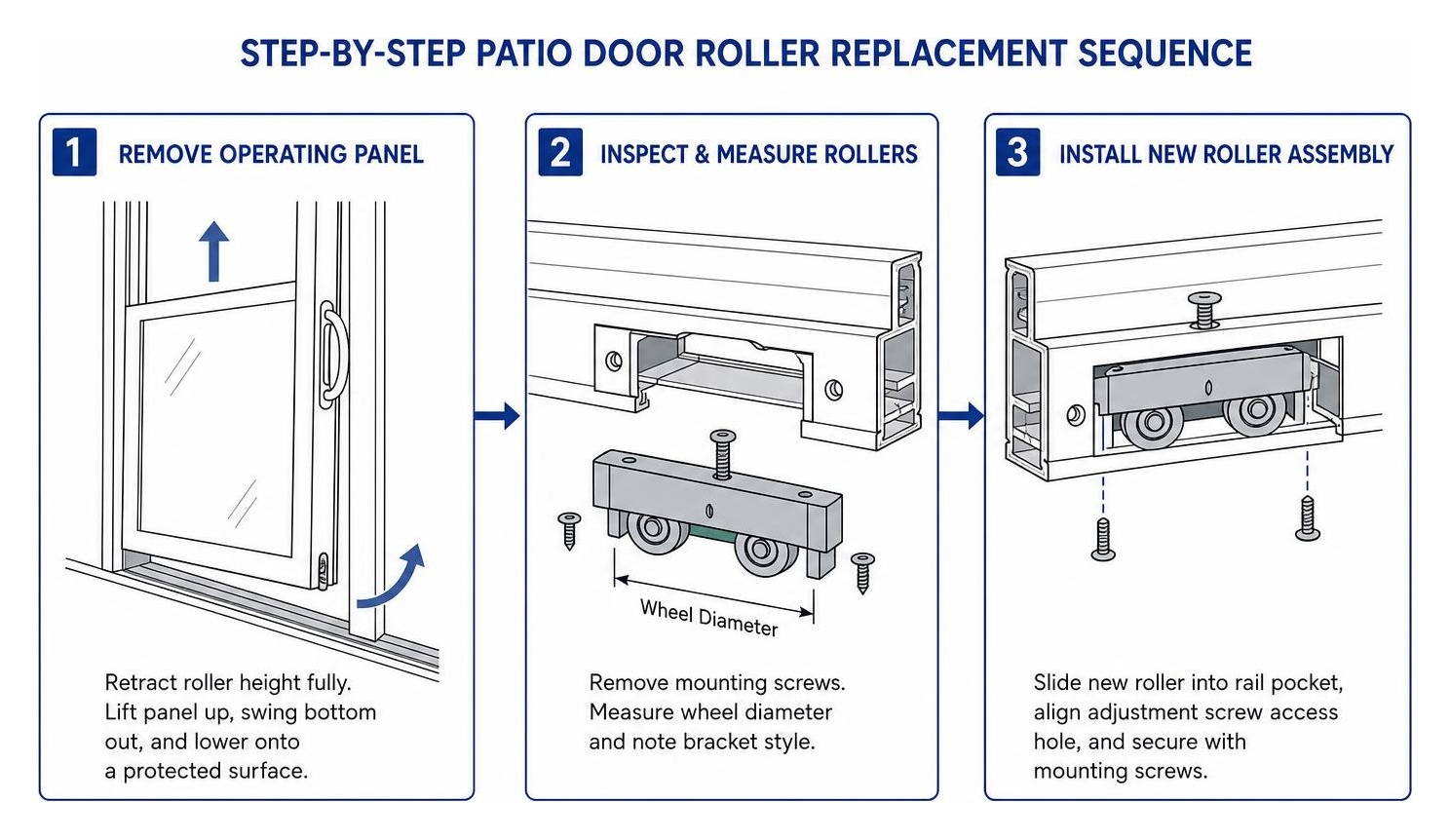

Measuring and Replacing Sliding Door Rollers for Milgard Patio Doors Replacement Parts

If your sliding patio door binds, drags, or makes grinding noises, worn roller wheels are usually the cause. Follow these steps to complete a replacement:

Safely Remove the Operating Panel: Retract the roller height fully by turning the lower adjustment screws counterclockwise. Lift the door panel up into the top head channel, swing the bottom edge outward over the sill track, and lower the panel onto a protected workspace.
Inspect and Measure Existing Rollers: Remove the bottom mounting screws securing the roller housing within the bottom rail pocket. Measure the wheel diameter (typically 1.25-inch steel wheels or 1.5-inch tandem roller assemblies) and note whether the mounting bracket is standard aluminum or stainless steel.
Install New Tandem Roller Assembly: Slide the new roller housing into the rail pocket, aligning the adjustment screw access hole with the cutout in the frame edge. Fasten the mounting screws securely.
Reinstall Panel and Adjust Height: Lift the panel back into the top frame guide and lower it carefully onto the stainless steel sill track. Locate the adjustment ports near the bottom corners of the panel. Turn the adjustment screws clockwise to raise the panel until it glides smoothly and sits square to the side jamb, leaving roughly 1/8 inch uniform gap along the vertical edge.

Understanding Milgard Warranty Coverage on Replacement Parts

Before purchasing replacement components out of pocket, review your coverage options. Milgard offers structured warranty protections depending on the original purchase agreement, installation type, and ownership status.

The standard Limited Lifetime Warranty varies based on whether the door was installed for new construction versus replacement scope and residential occupancy. If ownership is transferred after a property sale, the standard coverage converts to a 10-year parts-only limited warranty calculated directly from the original manufacture date. This transferred warranty includes 10-year hardware coverage alongside specific product finish and weatherstripping limitations.

Additionally, homeowners may purchase an upgraded coverage plan. The paid Full Lifetime Warranty upgrade remains valid for the natural lifetime of the original consumer owner, is non-transferable, and covers both replacement parts and labor costs. Glass breakage coverage is automatically included under this upgraded plan for Tuscany® V400 and V450 door series, while Trinsic™ V300 series requires adding glass breakage as an additional option.

Specific mechanical components and material finishes carry fixed, shorter warranty limits regardless of tiered coverage:

Component / Failure Mode	Standard Coverage Limit	Notes & Conditions
Insulated Glass Unit Delamination	10 Years	Seal failure resulting in moisture/fogging
Blinds Between the Glass	10 Years	Covers mechanical defect or internal blind failure
Factory Exterior Finishes (Peeling/Fading)	10 Years	Color retention within acceptable ASTM standards
Weatherstripping Components	1 Year	Perimeter pile seals and bulb gaskets
Insect Screen Frames & Mesh	1 Year	Screen cloth and corner frame connectors
Stainless Steel Hardware Corrosion	1 Year	Surface rust resistance under normal atmospheric exposure

Frequently Asked Questions About Milgard Patio Door Repairs

Are Milgard patio door replacement parts interchangeable between different series?

No. Hardware components such as handle sets, rollers, and mortise locks are engineered for specific product lines. For instance, Tuscany French Rail tandem rollers feature a different housing profile than standard Trinsic V300 narrow rail rollers. Always verify frame material, series name, and panel thickness before ordering replacement hardware.

How do I measure patio door rollers to ensure I order the correct size?

Remove the roller assembly from the bottom rail pocket. Use a digital caliper or standard ruler to measure the outer diameter of the wheel (common sizes are 1.25 inches and 1.5 inches). Next, measure the width and length of the steel bracket housing, and note whether the adjustment screw is positioned on the top, side, or rear of the assembly.

Can I replace a broken Milgard SmartTouch handle set myself?

Yes. SmartTouch handle set replacements are designed for straightforward DIY installation using basic hand tools. Unfasten the two interior trim screws, align the new handle’s square spindle and thumb latch with the existing mortise lock keyway, and drive the replacement mounting screws back into place. No professional modification to the vinyl frame is necessary.

Restore Your Patio Doors with Professional Guidance

Replacing worn or broken milgard patio doors replacement parts is the most effective way to restore light operation, enhance energy efficiency, and maintain home security. By accurately identifying your door series, taking precise measurements, and choosing genuine OEM rollers, handles, and lock mechanisms, you can keep your patio door operating smoothly for years to come.
